WEIGHING
AND SAMPLING STATIONS
WEIGHING STATIONS
Protect your operators and raw materials with our weighing booths
Handling volatile substances can pose significant health risks to your staff.
The weighing stage, in particular, carries a high risk of contamination due to airborne particles and bio-contaminants (bacteria, fungi, viruses, etc.).
Installing high-performance filtration systems is therefore essential to mitigate these risks.
The concept of localized protection refers to equipment installed as close as possible to the critical area whether in a polluted industrial environment or in a cleanroom setting.
Localized Protection Solutions
Since 1989, Euroflux has been designing and manufacturing equipment in France dedicated to the control of airborne particles and bio-contamination.
Our weighing booths are part of these protective solutions.

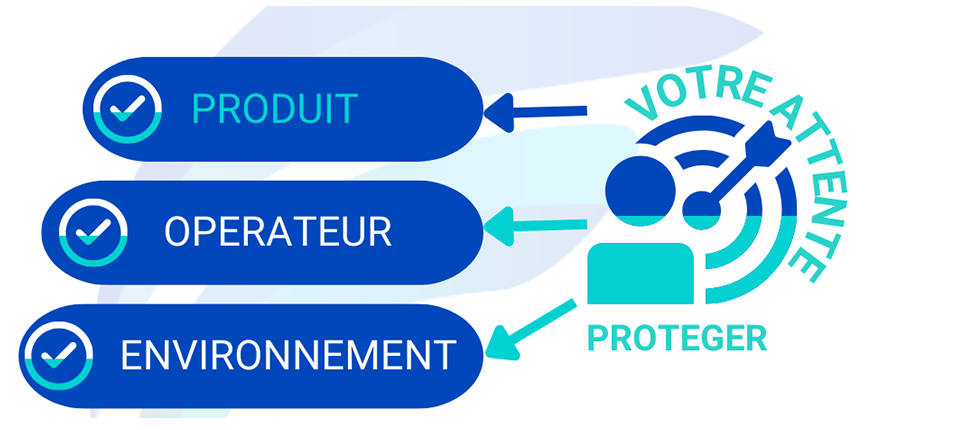

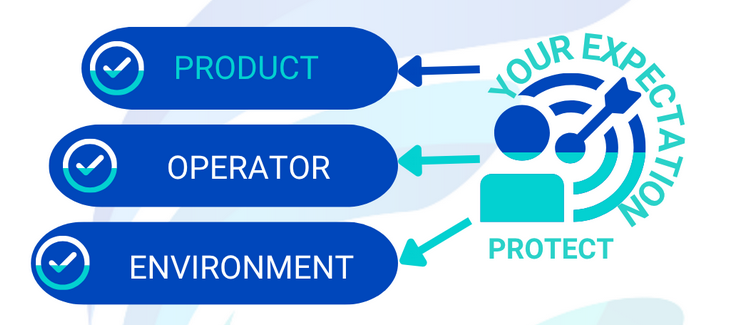

They ensure triple protection against contamination of:
– The operator
– The product
– The surrounding environment
Our standard and custom-built solutions are designed to meet your needs, regardless of your available space or configuration, while complying with ISO 14644 standards.
From project design to installation and commissioning, you benefit from a single point of contact throughout your project.
OUR RANGE OF WEIGHING STATIONS

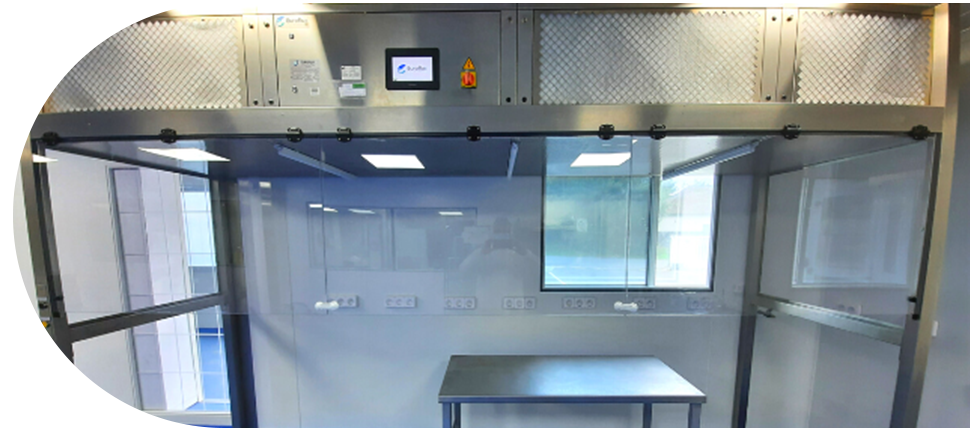

Fresh Air Weighing Booths
Combination of a supply plenum and an exhaust column.
Provides triple protection with the filtered air discharged to the outside ideal for handling CMR or ATEX-risk materials.
Recirculating Weighing Booths
Combination of a supply plenum and an exhaust column.
Provides triple protection without discharging filtered air to the outside.
Custom Weighing Booths
Configurable to your specific requirements, with available options such as audit trail systems, motorized mobility, and more.
Ergonomics, Safety and Efficiency
In addition to our standard models, we design custom weighing booths tailored to your technical and ergonomic needs, ensuring the comfort and safety of your teams.
For over 35 years, our mission has been to design and manufacture in France equipment with low environmental impact.
We pay special attention to the durability, modularity, and energy efficiency of our manufactured products.
The innovative design of our weighing stations ensures full Emery test compliance throughout their operational life.
Our technical teams strictly follow all applicable standards and regulations.
Ergonomics, Safety and Efficiency
In addition to our standard models, we design custom weighing booths tailored to your technical and ergonomic needs, ensuring the comfort and safety of your teams.
For over 35 years, our mission has been to design and manufacture in France equipment with low environmental impact.
We pay special attention to the durability, modularity, and energy efficiency of our manufactured products.
The innovative design of our weighing stations ensures full Emery test compliance throughout their operational life.
Our technical teams strictly follow all applicable standards and regulations.
Discover Our Range of Weighing Booths
THE ADVANTAGES OF OUR WEIGHING BOOTHS
Easy Filter Access: Grilles and prefilters (G4/F7) can be removed without tools.
Long-Term Reliability – Emery Test Approved: Guaranteed static and dynamic airtightness.
Touchscreen Control System: Centralized monitoring and operation via an intuitive HMI display.
Each Weighing Booth Consists of Four Key Components:
- Modul’air
Thanks to the piston effect of the laminar airflow, the Modul’air system ensures complete operator and product protection across the entire work area.
Standard filtration: H14
Optional: U15 to U17 on request
- Filtration on recovery
An efficient prefiltration system extends the service life of H14 absolute filters.
Standard: G4 + F7 prefilters
Optional: M5 to F9 prefiltration or absolute filtration
Optional: Bag-In/Bag-Out (BIBO) maintenance housing for safe filter replacement
- Laminar Airflow Guidance
Ensures proper containment and protection of both the product and the operator.
Flexible guidance using strip curtains
Rigid guidance using panels (Plexiglas, stainless steel, etc.)
- Weighing Booth Structure
Self-supporting design with structural posts
Suspended design (no posts), fixed with threaded rods on existing supports
Motorized version available for mobile configurations
Discover Our Range of Weighing Booths
THE ADVANTAGES OF OUR WEIGHING BOOTHS
Easy Filter Access: Grilles and prefilters (G4/F7) can be removed without tools.
Long-Term Reliability – Emery Test Approved: Guaranteed static and dynamic airtightness.
Touchscreen Control System: Centralized monitoring and operation via an intuitive HMI display.
Each Weighing Booth Consists of Four Key Components:
- Modul’air
Thanks to the piston effect of the laminar airflow, the Modul’air system ensures complete operator and product protection across the entire work area.
Standard filtration: H14
Optional: U15 to U17 on request
- Filtration on recovery
An efficient prefiltration system extends the service life of H14 absolute filters.
Standard: G4 + F7 prefilters
Optional: M5 to F9 prefiltration or absolute filtration
Optional: Bag-In/Bag-Out (BIBO) maintenance housing for safe filter replacement
- Laminar Airflow Guidance
Ensures proper containment and protection of both the product and the operator.
Flexible guidance using strip curtains
Rigid guidance using panels (Plexiglas, stainless steel, etc.)
- Weighing Booth Structure
Self-supporting design with structural posts
Suspended design (no posts), fixed with threaded rods on existing supports
Motorized version available for mobile configurations
Want to Go Further…Technical Specifications of Our Weighing Booths
-
- Structure: 100% stainless steel 304L
- Absolute filter protection grille
- Quick assembly between multiple Modul’air units
- Self-regulating EC fan
- G4 prefilter and H14 absolute filter
- H14 maintenance access from below
- Structure: 100% stainless steel 304L
- Removable exhaust grille (tool-free)
- Integration options: display screen, niche, shelf, work surface, sockets
- Standard filtration: G4 / F7 prefilters
- Additional filtration stages available on request
- Optional Bag-In/Bag-Out (BIBO) housings for safe maintenance
- Optional cooling compensation system integration
With an air velocity of 0.45 m/s, and a filtration surface of 1 m², the air volume processed by one L.A.F. (Laminar Airflow Filter) is 1,620 m³/h per m² of filtration area.

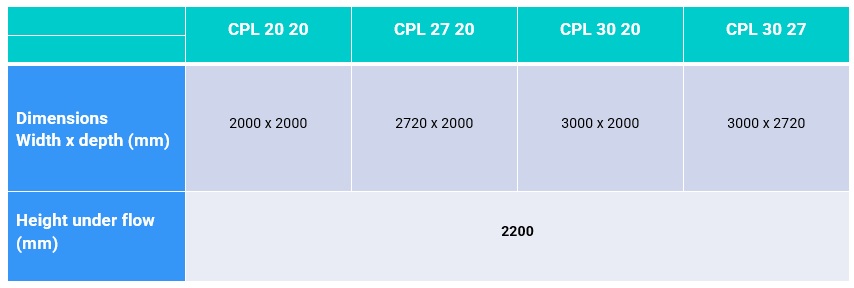

The models listed are among the most frequently installed other configurations are available upon request.
Want to Go Further…Technical Specifications of Our Weighing Booths
-
- Structure: 100% stainless steel 304L
- Absolute filter protection grille
- Quick assembly between multiple Modul’air units
- Self-regulating EC fan
- G4 prefilter and H14 absolute filter
- H14 maintenance access from below
- Structure: 100% stainless steel 304L
- Removable exhaust grille (tool-free)
- Integration options: display screen, niche, shelf, work surface, sockets
- Standard filtration: G4 / F7 prefilters
- Additional filtration stages available on request
- Optional Bag-In/Bag-Out (BIBO) housings for safe maintenance
- Optional cooling compensation system integration
With an air velocity of 0.45 m/s, and a filtration surface of 1 m², the air volume processed by one L.A.F. (Laminar Airflow Filter) is 1,620 m³/h per m² of filtration area.
The models listed are among the most frequently installed other configurations are available upon request.
Our WEIGHING STATIONS serve the following sectors
Our WEIGHING STATIONS serve the following sectors
Our WEIGHING STATIONS serve the following sectors
Euroflux: 36 Years of Reliability Serving the Pharmaceutical Industry
An Euroflux Weighing Booth for Pharmaceutical Cleanroom Still Running
