LAMINAR AIRFLOW
FFU / Modul’air
Laminar Airflow
Fighting Air Contamination
The presence of airborne particles and biocontaminants (bacteria, fungi, viruses, etc.) is a major challenge in industrial and medical environments.
Implementing high-efficiency filtration systems is essential to control and prevent such contamination.
The concept of localized protection refers to equipment installed as close as possible to the critical area whether in a polluted industrial environment or a cleanroom.
Laminar Airflow
Fighting Air Contamination
The presence of airborne particles and biocontaminants (bacteria, fungi, viruses, etc.) is a major challenge in industrial and medical environments.
Implementing high-efficiency filtration systems is essential to control and prevent such contamination.
The concept of localized protection refers to equipment installed as close as possible to the critical area whether in a polluted industrial environment or a cleanroom.
Localized Protection Solutions
Since 1989, Euroflux has been designing and manufacturing in France equipment dedicated to controlling airborne particulate and microbiological contamination.
Laminar Airflow (LAF) systems are part of these solutions.
They ensure the protection of work zones from environmental contamination.
Our standard and custom-built units are designed to meet your specific needs, regardless of your workspace configuration or volume, while complying with the ISO 14644 standard.
From project design to commissioning, you benefit from a single dedicated contact person throughout the process.
Localized Protection Solutions
Since 1989, Euroflux has been designing and manufacturing in France equipment dedicated to controlling airborne particulate and microbiological contamination.
Laminar Airflow (LAF) systems are part of these solutions.
They ensure the protection of work zones from environmental contamination.
Our standard and custom-built units are designed to meet your specific needs, regardless of your workspace configuration or volume, while complying with the ISO 14644 standard.
From project design to commissioning, you benefit from a single dedicated contact person throughout the process.
OUR RANGE OF LAMINAR AIRFLOW SYSTEMS
MODUL' AIR
Self-contained filtration unit with G4 and H14 filters, EC fan, and H14 filter maintenance from underneath.

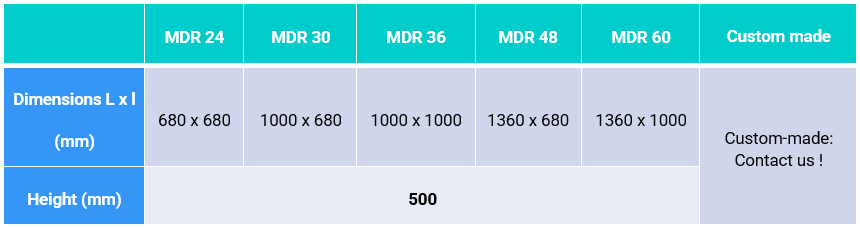

Available in several dimensions.
MODUL’ AIR EXTLAT
Self-contained filtration unit with G4 and H14 filters, EC fan, and H14 filter maintenance from the side.
Available in several dimensions.
FFU
Self-contained filtration unit with G4 and H14 filters, EC fan, and H14 filter maintenance from the top.
BLOWING CEILING
Assembly of MODUL’AIR or FFU units.
CUSTOM-MADE MODUL’AIR
Dimensions on request, different filtration options, UL or ATEX compliance, etc
Durability and Energy Efficiency
For over 35 years, our priority has been to design and manufacture in France environmentally responsible equipment.
We place great emphasis on the durability, modularity, and energy optimization of our laminar flow products.
Their innovative design guarantees long-term Emery test compliance, ensuring the airtightness and performance of your installation over time.
Our technical teams rigorously adhere to all applicable standards and regulations.
Durability and Energy Efficiency
For over 35 years, our priority has been to design and manufacture in France environmentally responsible equipment.
We place great emphasis on the durability, modularity, and energy optimization of our laminar flow products.
Their innovative design guarantees long-term Emery test compliance, ensuring the airtightness and performance of your installation over time.
Our technical teams rigorously adhere to all applicable standards and regulations.
The Advantages of Our Modul’Air
Modul’Air: 100% Autonomous Laminar Airflow Unit
The Modul’Air is a Fan Filter Unit (FFU) designed and manufactured by Euroflux in France. It is specifically engineered to eliminate any structural leakage during assembly.

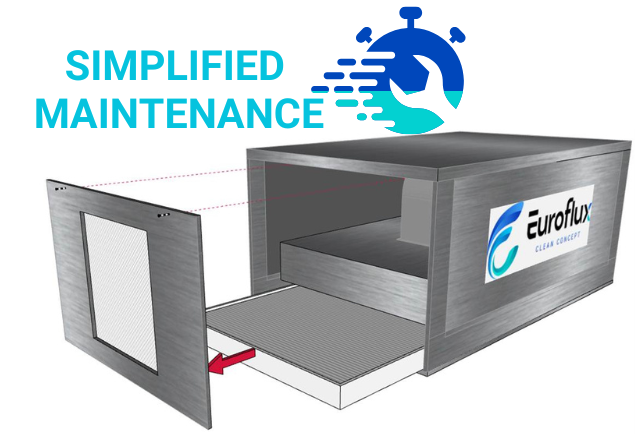

Filter accessibility: G4 pre-filter on the side H14 filter accessible from below or the side (depending on the model)
Guaranteed long-term airtightness (Emery test certified): Static and dynamic system tightness
Airflow control: Embedded electronics 0–10V or Modbus control options
- Frame / Structure
Enables assembly of multiple Modul’Air units. Allows attachment of poles, threaded rods, or airflow guides
- Laminar Airflow Guidance
Flexible curtains or rigid panels (plexiglass, stainless steel, etc.). Can be integrated into machine enclosures
- HEPA Filter
Standard: H14. Optional: U15 to U17 - Plenum
Ensures uniform air distribution upstream of the HEPA filter for a homogeneous laminar flow.
- Pre-filtration
Standard: G4 pre-filter / Optional: M5 to F9 - Ventilation
High-efficiency EC motor-fan (ERP 2015 compliant) / Embedded electronics / Manual or self-regulated control (0–10V or Modbus signal)
The Advantages of Our Modul’Air
Modul’Air: 100% Autonomous Laminar Airflow Unit
The Modul’Air is a Fan Filter Unit (FFU) designed and manufactured by Euroflux in France. It is specifically engineered to eliminate any structural leakage during assembly.
Filter accessibility: G4 pre-filter on the side H14 filter accessible from below or the side (depending on the model)
Guaranteed long-term airtightness (Emery test certified): Static and dynamic system tightness
Airflow control: Embedded electronics. 0–10V or Modbus control options
- Frame / Structure
Enables assembly of multiple Modul’Air units / Allows attachment of poles, threaded rods, or airflow guides
- Laminar Airflow Guidance
Flexible curtains or rigid panels (plexiglass, stainless steel, etc.) / Can be integrated into machine enclosures
- HEPA Filter
Standard: H14 / Optional: U15 to U17 - Plenum
Ensures uniform air distribution upstream of the HEPA filter for a homogeneous laminar flow
- Pre-filtration
Standard: G4 pre-filter / Optional: M5 to F9 - Ventilation
High-efficiency EC motor-fan (ERP 2015 compliant) / Embedded electronics / Manual or self-regulated control (0–10V or Modbus signal)
Technical features of our laminar flow units
- Quick assembly of multiple units
- 100% stainless steel 304L structure
- Protective grid for HEPA filter
- Self-regulated EC fan
- G4 pre-filter
- H14 filter
- Bottom access for maintenance
Custom sizes available on request
- Quick assembly of multiple units
- 100% stainless steel 304L structure
- Protective grid for HEPA filter
- Self-regulated EC fan
- G4 pre-filter
- H14 filter
- Side access for maintenance
Custom sizes available on request
- Aluminum structure
- G4 pre-filter
- H14 filter
- EC fan
- Top access for maintenance
L 1187 mm x W 597 mm x H 350 mm
Technical features of our laminar flow units
- Quick assembly of multiple units
- 100% stainless steel 304L structure
- Protective grid for HEPA filter
- Self-regulated EC fan
- G4 pre-filter
- H14 filter
- Bottom access for maintenance
Custom sizes available on request
- Quick assembly of multiple units
- 100% stainless steel 304L structure
- Protective grid for HEPA filter
- Self-regulated EC fan
- G4 pre-filter
- H14 filter
- Side access for maintenance
Custom sizes available on request
- Aluminum structure
- G4 pre-filter
- H14 filter
- EC fan
- Top access for maintenance
L 1187 mm x W 597 mm x H 350 mm
